Center Bushing Mounts

×

Tech Products' Center Bushing Mounts are fail-safe, multi-direction isolators for a variety of heavy duty applications. During installation, a self-contained rebound is formed when the mounts resilient element spreads under compression. These low-deflection, one-piece safety mounts are rated by static load in the axial direction. Standard materials are neoprene and low carbon steel.

An internal sleeve serves as a positive spacer to control pre-loading.

Features

• Single piece design for easy installation

• Fail-Safe Installation when proper snubbing washers are used

• Oil, Fuel, and Solvent resistant neoprene elastomer

• -20°F to 180°F operating temperature range

CLICK TO VIEW CATALOG PAGE



60220-60223 Series (30 to 140 lbs)

Item #
Color Code
Max Load
Snubbing Washer
Price
Avail
60220
Red
30 lbs
00181
(not included)
$9.04
Call for Availability
View
60221
Green
50 lbs
00181
(not included)
$9.04
192
View
60222
Blue
80 lbs
00181
(not included)
$9.04
72
View
60223
White
140 lbs
00181
(not included)
$9.04
Call for Availability
View

T3027 Series (100 to 200 lbs)

Item #
Color Code
Max Load
Snubbing Washer
Price
Avail
T3027W
Blue
100 lbs
00181
(not included)
$30.84
15
View
T3027M
None
200 lbs
00181
(not included)
$30.84
63
View

60230-60233 Series (130 to 520 lbs)

60230-60233 has a 0.40in  inner diameter

60234 has a .53in inner diameter

Item #
Color Code
Max Load
Snubbing Washer
Price
Avail
60230
Red
130 lbs
00182
(not included)
$10.86
8
View
60231
Green
190 lbs
00182
(not included)
$10.86
1382
View
60232
Blue
300 lbs
00182
(not included)
$10.86
46
View
60233
White
520 lbs
00182
(not included)
$10.86
6
View
60234
Red
100 lbs
00182
(not included)
$13.36
47
View

60235-60243 Series (230 to 720 lbs)

Item #
Color Code
Max Load
Snubbing Washer
Price
Avail
60235
Red
230 lbs
00182
(not included)
$17.93
Call for Availability
View
60236
Green
360 lbs
00182
(not included)
$17.88
Call for Availability
View
60237
Blue
520 lbs
00182
(not included)
$18.23
17
View
60238
White
720 lbs
00182
(not included)
$17.80
10
View
60240
Red
230 lbs
00183
(not included)
$13.24
2
View
60241
Green
360 lbs
00183
(not included)
$13.20
Call for Availability
View
60242
Blue
520 lbs
00183
(not included)
$13.30
127
View
60243
White
720 lbs
00183
(not included)
$13.08
Call for Availability
View

T5137 Series (300 to 400 lbs)

Item #
Color Code
Max Load
Snubbing Washer
Price
Avail
T5137K
None
300 lbs
00182
(not included)
$34.72
Call for Availability
View
T5137H
White
400 lbs
00182
(not included)
$34.72
167
View

60245-60248 Series (400 to 1100 lbs)

Item #
Color Code
Max Load
Snubbing Washer
Price
Avail
60245
Red
400 lbs
00183
(not included)
$17.40
36
View
60246
Green
540 lbs
00183
(not included)
$17.08
31
View
60247
Blue
750 lbs
00183
(not included)
$17.27
27
View
60248
White
1100 lbs
00183
(not included)
$16.66
29
View

T6038 Series (500 to 650 lbs)

Item #
Color Code
Max Load
Snubbing Washer
Price
Avail
T6038K
None
500 lbs
00183
(not included)
$42.97
Call for Availability
View
T6038H
Orange
650 lbs
00183
(not included)
$42.97
156
View

60250-60253 Series (600 to 1500 lbs)

Item #
Color Code
Max Load
Snubbing Washer
Price
Avail
60250
Red
600 lbs
00183
(not included)
$28.18
Call for Availability
View
60251
Green
800 lbs
00183
(not included)
$28.18
Call for Availability
View
60252
Blue
1100 lbs
00183
(not included)
$28.18
Call for Availability
View
60253
White
1500 lbs
00183
(not included)
$28.18
12
View

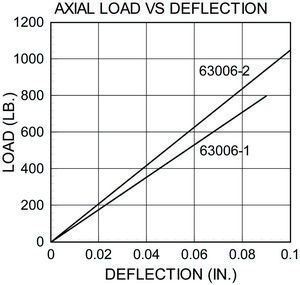

63006 Series (800 to 1050 lbs)

Item #
Color Code
Max Load
Snubbing Washer
Price
Avail
63006-1
Orange
800 lbs
00308-3
(not included)
$19.67
Call for Availability
View
63006-2
Yellow
1050 lbs
00308-3
(not included)
$20.14
Call for Availability
View

60260-60263 Series (950 to 2400 lbs)

Item #
Color Code
Max Load
Snubbing Washer
Price
Avail
60260
Red
950 lbs
00184
(not included)
$41.90
2
View
60261
Green
1300 lbs
00184
(not included)
$41.47
Call for Availability
View
60262
Blue
1850 lbs
00184
(not included)
$41.74
8
View
60263
White
2400 lbs
00184
(not included)
$42.00
45
View
