Cupmounts

×
These rugged and versatile mounts control vibration and protect against shock. Under normal loading conditions, they exhibit natural frequencies of approximately 25 Hz and isolate disturbing frequencies above 35 Hz. Constructed of zinc plated steel and standard neoprene elastomer (-20oF to 180oF) or optional high damped silicone (-80oF to 300oF), these fail-safe mounts can be mounted in any orientation. Contact Tech Products for additional thread sizes and thru core options.

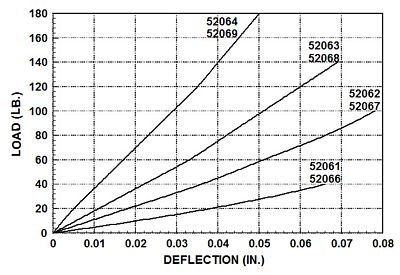

Item #
Elastomer
Max Static Load
Price
Qty to Add
52061
Neoprene
20 lbs
Not Allowed To Buy
52062
Neoprene
40 lbs
Not Allowed To Buy
52063
Neoprene
70 lbs
Not Allowed To Buy
52064
Neoprene
100 lbs
Not Allowed To Buy
52066
High Damped Silicone
20 lbs
Not Allowed To Buy
52067
High Damped Silicone
40 lbs
Not Allowed To Buy
52068
High Damped Silicone
70 lbs
Not Allowed To Buy
52069
High Damped Silicone
100 lbs
Not Allowed To Buy

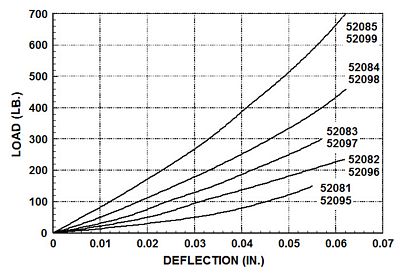

Item #
Elastomer
Max Static Load
Price
Qty to Add
52081
Neoprene
50 lbs
Not Allowed To Buy
52082
Neoprene
100 lbs
52083
Neoprene
150 lbs
Not Allowed To Buy
52084
Neoprene
250 lbs
Not Allowed To Buy
52085
Neoprene
400 lbs
Not Allowed To Buy
52095
High Damped Silicone
50 lbs
Not Allowed To Buy
52096
High Damped Silicone
100 lbs
Not Allowed To Buy
52097
High Damped Silicone
150 lbs
Not Allowed To Buy
52098
High Damped Silicone
250 lbs
Not Allowed To Buy
52099
High Damped Silicone
400 lbs
Not Allowed To Buy

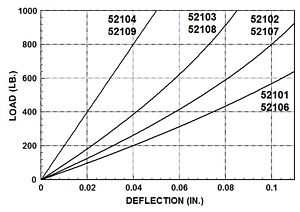

Item #
Elastomer
Max Static Load
Price
Qty to Add
52101
Neoprene
250 lbs
Not Allowed To Buy
52102
Neoprene
400 lbs
52103
Neoprene
650 lbs
Not Allowed To Buy
52104
Neoprene
900 lbs
Not Allowed To Buy
52106
High Damped Silicone
250 lbs
Not Allowed To Buy
52107
High Damped Silicone
400 lbs
Not Allowed To Buy
52108
High Damped Silicone
650 lbs
Not Allowed To Buy
52109
High Damped Silicone
900 lbs
Not Allowed To Buy
