Dome Mounts

×

The interlocking metals of the Dome Mount series result in a fail-safe mount. This feature and low stiffness make them ideal for isolating medium- to large- size engines as well as fans, blowers, pumps and air handling equipment. They have an approximate natural frequency of 9Hz at maximum load.
CLICK TO VIEW CATALOG PAGE

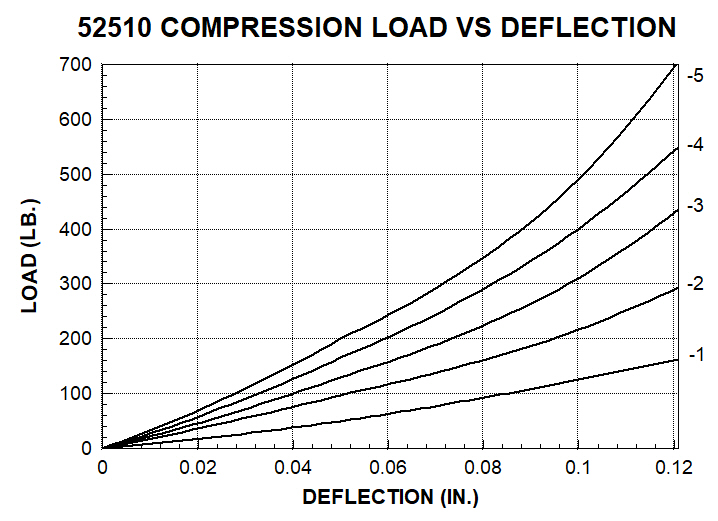

52510 Series (85-375 lbs)

Item #
Color Code
Max Load
Spring Rate
Price
Qty to Add
52510-1
Yellow
85 lbs
1000 lbs/in
$0.00
Not Allowed To Buy
52510-2
Red
170 lbs
1875 lbs/in
$0.00
Not Allowed To Buy
52510-3
Green
225 lbs
2500 lbs/in
$0.00
Not Allowed To Buy
52510-4
Blue
300 lbs
3750 lbs/in
$0.00
Not Allowed To Buy
52510-5
White
375 lbs
4375 lbs/in
$0.00
Not Allowed To Buy

52545 Series (375 to 1425 lbs)

Item #
Color Code
Max Load
Spring Rate
Price
Qty to Add
52545-1
Red
375 lbs
3000 lbs/in
$30.26
Not Allowed To Buy
52545-2
Green
800 lbs
6400 lbs/in
$29.71
52545-3
Blue
925 lbs
7400 lbs/in
$30.05
52545-4
White
1425 lbs
11500 lbs/in
$29.04

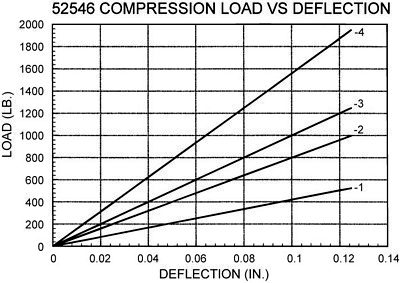

52546 Series (525 to 1950 lbs)

Item #
Color Code
Max Load
Spring Rate
Price
Qty to Add
52546-1
Red
525 lbs
4150 lbs/in
$0.00
Not Allowed To Buy
52546-2
Green
1000 lbs
8300 lbs/in
$0.00
Not Allowed To Buy
52546-3
Blue
1250 lbs
10000 lbs/in
$0.00
Not Allowed To Buy
52546-4
White
1950 lbs
15600 lbs/in
$0.00
Not Allowed To Buy
