Universal Mounts

×

Low-cost, easy-to-install Universal Mounts provide fail-safe isolation for vehicle cabs, engines, transmissions and other equipment up to 4550 lbs. Consisting of two parts, Universal Mounts are held in place with a through bolt. Installation is fail-safe when proper snubbing washers are used. Standard materials are neoprene and low carbon steel.
CLICK TO VIEW CATALOG PAGE

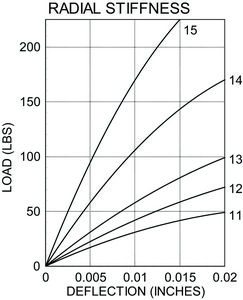

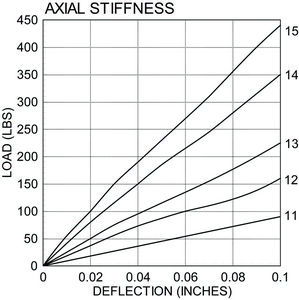

Size 1 (35 to 280 lbs)


Item #
Color Code
Axial Load Rating Thick
Axial Load Rating Thin
Radial Load Rating Thick
Radial Load Rating Thin
Snubbing Washer
Price
Qty to Add
60011
Yellow
N/A lbs
35 lbs
N/A lbs
18 lbs
00181
(not included)
$9.29
Not Allowed To Buy
60012
Red
N/A lbs
80 lbs
N/A lbs
27 lbs
00181
(not included)
$9.29
Not Allowed To Buy
60013
Green
N/A lbs
130 lbs
N/A lbs
36 lbs
00181
(not included)
$9.29
Not Allowed To Buy
60014
Blue
N/A lbs
235 lbs
N/A lbs
45 lbs
00181
(not included)
$9.29
Not Allowed To Buy
60015
White
N/A lbs
280 lbs
N/A lbs
55 lbs
00181
(not included)
$9.29
Not Allowed To Buy

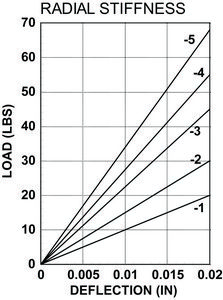

Size 1 Short Hub - For 3/16" Thick Support

Item #
Color Code
Axial Load Rating Thick
Axial Load Rating Thin
Radial Load Rating Thick
Radial Load Rating Thin
Snubbing Washer
Price
Qty to Add
60166-1
Yellow
N/A lbs
35 lbs
N/A lbs
9 lbs
00181
(not included)
$17.63
Not Allowed To Buy
60166-2
Red
N/A lbs
80 lbs
N/A lbs
14 lbs
00181
(not included)
$17.63
Not Allowed To Buy
60166-3
Green
N/A lbs
130 lbs
N/A lbs
18 lbs
00181
(not included)
$17.63
60166-4
Blue
N/A lbs
235 lbs
N/A lbs
23 lbs
00181
(not included)
$17.63
Not Allowed To Buy
60166-5
White
N/A lbs
280 lbs
N/A lbs
28 lbs
00181
(not included)
$17.63
Not Allowed To Buy

Size 1 Short Hub - For 1/8" Thick Support

Item #
Color Code
Axial Load Rating Thick
Axial Load Rating Thin
Radial Load Rating Thick
Radial Load Rating Thin
Snubbing Washer
Price
Qty to Add
60163-1
Yellow
N/A lbs
35 lbs
N/A lbs
9 lbs
00181
(not included)
$17.63
60163-2
Red
N/A lbs
80 lbs
N/A lbs
14 lbs
00181
(not included)
$17.63
60163-3
Green
N/A lbs
130 lbs
N/A lbs
18 lbs
00181
(not included)
$17.63
Not Allowed To Buy
60163-4
Blue
N/A lbs
235 lbs
N/A lbs
23 lbs
00181
(not included)
$17.63
Not Allowed To Buy
60163-5
White
N/A lbs
280 lbs
N/A lbs
28 lbs
00181
(not included)
$17.63

Size 2 (65 to 630 lbs)

Item #
Color Code
Axial Load Rating Thick
Axial Load Rating Thin
Radial Load Rating Thick
Radial Load Rating Thin
Snubbing Washer
Price
Qty to Add
60021
Yellow
135 lbs
65 lbs
55 lbs
45 lbs
00182
(not included)
$12.52
Not Allowed To Buy
60022
Red
180 lbs
125 lbs
85 lbs
80 lbs
00182
(not included)
$12.84
60023
Green
240 lbs
170 lbs
130 lbs
125 lbs
00182
(not included)
$12.36
Not Allowed To Buy
60024
Blue
380 lbs
275 lbs
190 lbs
190 lbs
00182
(not included)
$12.35
Not Allowed To Buy
60025
White
630 lbs
390 lbs
290 lbs
290 lbs
00182
(not included)
$11.84
Not Allowed To Buy

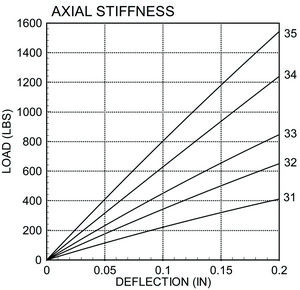

Size 3 (100 to 1330 lbs)

Item #
Color Code
Axial Load Rating Thick
Axial Load Rating Thin
Radial Load Rating Thick
Radial Load Rating Thin
Snubbing Washer
Price
Qty to Add
60031
Yellow
215 lbs
100 lbs
90 lbs
80 lbs
00183
(not included)
$23.46
Not Allowed To Buy
60032
Red
360 lbs
180 lbs
140 lbs
120 lbs
00183
(not included)
$24.34
Not Allowed To Buy
60033
Green
490 lbs
250 lbs
225 lbs
175 lbs
00183
(not included)
$23.93
Not Allowed To Buy
60034
Blue
860 lbs
350 lbs
385 lbs
265 lbs
00183
(not included)
$23.87
Not Allowed To Buy
60035
White
1330 lbs
500 lbs
690 lbs
370 lbs
00183
(not included)
$23.08
Not Allowed To Buy

Size 3 Short Hub - For 1/4" Thick Support

Item #
Color Code
Axial Load Rating Thick
Axial Load Rating Thin
Radial Load Rating Thick
Radial Load Rating Thin
Snubbing Washer
Price
Qty to Add
60165-1
Yellow
N/A lbs
215 lbs
N/A lbs
40 lbs
00183
(not included)
$22.33
60165-2
Red
N/A lbs
360 lbs
N/A lbs
60 lbs
00183
(not included)
$22.20
Not Allowed To Buy
60165-3
Green
N/A lbs
490 lbs
N/A lbs
88 lbs
00183
(not included)
$21.86
Not Allowed To Buy
60165-4
Blue
N/A lbs
860 lbs
N/A lbs
133 lbs
00183
(not included)
$21.92
Not Allowed To Buy
60165-5
White
N/A lbs
1330 lbs
N/A lbs
185 lbs
00183
(not included)
$21.38
Not Allowed To Buy

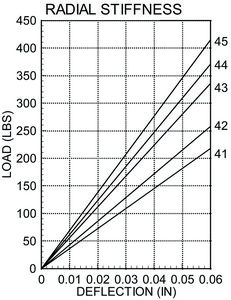

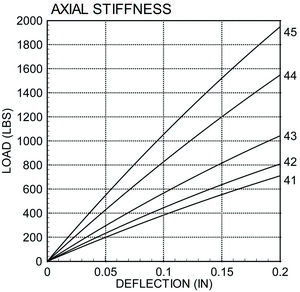

Size 4 (160 to 2070 lbs)

Item #
Color Code
Axial Load Rating Thick
Axial Load Rating Thin
Radial Load Rating Thick
Radial Load Rating Thin
Snubbing Washer
Price
Qty to Add
60041
Yellow
270 lbs
160 lbs
130 lbs
100 lbs
00184
(not included)
$44.99
60042
Red
500 lbs
300 lbs
210 lbs
200 lbs
00184
(not included)
$43.06
60043
Green
760 lbs
410 lbs
330 lbs
310 lbs
00184
(not included)
$41.30
60044
Blue
1150 lbs
520 lbs
550 lbs
420 lbs
00184
(not included)
$42.78
Not Allowed To Buy
60045
White
2070 lbs
610 lbs
955 lbs
570 lbs
00184
(not included)
$40.64
Not Allowed To Buy

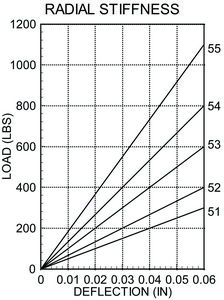

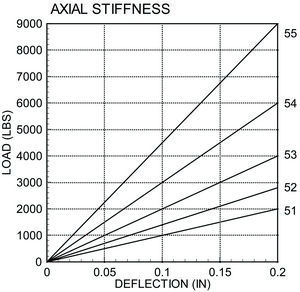

Size 5 (300 to 4550 lbs)

Item #
Color Code
Axial Load Rating Thick
Axial Load Rating Thin
Radial Load Rating Thick
Radial Load Rating Thin
Snubbing Washer
Price
Qty to Add
60051
Yellow
1150 lbs
300 lbs
250 lbs
150 lbs
00185
(not included)
$103.46
Not Allowed To Buy
60052
Red
1925 lbs
500 lbs
350 lbs
220 lbs
00185
(not included)
$98.59
60053
Green
2575 lbs
700 lbs
600 lbs
300 lbs
00185
(not included)
$96.88
Not Allowed To Buy
60054
Blue
3550 lbs
900 lbs
900 lbs
470 lbs
00185
(not included)
$97.91
Not Allowed To Buy
60055
White
4550 lbs
1200 lbs
1400 lbs
660 lbs
00185
(not included)
$93.48
Not Allowed To Buy
