Fail-Safe Compression

×

These fail-safe isolators are ideal for isolation of diesel engines and generators used in construction equipment, recreational vehicles and off-road equipment. The low natural frequency allows them to be used for computer and electronic equipment when there is a need for a "ruggedized" installation. They are also excellent isolators for compressors, motors, pumps and other machinery when skid mounted. Axial to radial stiffness ratio is 6:1.


Item #
Color Code
Axial Static Load
Snubbing Washer
Price
Qty to Add

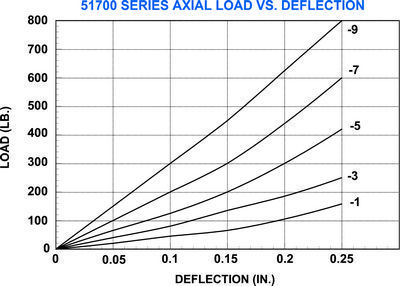

51700-1
Yellow/Gold
50 lbs
00181-1
(not included)
Not Allowed To Buy
51700-3
Red/Gold
90 lbs
00181-1
(not included)
Not Allowed To Buy
51700-5
Green/Gold
150 lbs
00181-1
(not included)
51700-7
Blue/Gold
215 lbs
00181-1
(not included)
51700-9
White/Gold
300 lbs
00181-1
(not included)

Item #
Color Code
Axial Static Load
Snubbing Washer
Price
Qty to Add
51641-2
Yellow/Gold
100 lbs
00182
(not included)
51641-4
Red/Gold
155 lbs
00182
(not included)
51641-6
Green/Gold
230 lbs
00182
(not included)
51641-8
Blue/Gold
320 lbs
00182
(not included)
51641-10
White/Gold
420 lbs
00182
(not included)

Item #
Color Code
Axial Static Load
Snubbing Washer
Price
Qty to Add
51716-2
Yellow/Gold
120 lbs
00182
(not included)
51716-4
Red/Gold
185 lbs
00182
(not included)
51716-6
Green/Gold
250 lbs
00182
(not included)
51716-8
Blue/Gold
400 lbs
00182
(not included)
Not Allowed To Buy
51716-10
White/Gold
550 lbs
00182
(not included)
Not Allowed To Buy
